Overview
Quick Details
Condition: New
Warranty: 6 months
Supply Ability: Supply Ability:1500 Unit/Units per Month
Place of Origin: Shandong, China

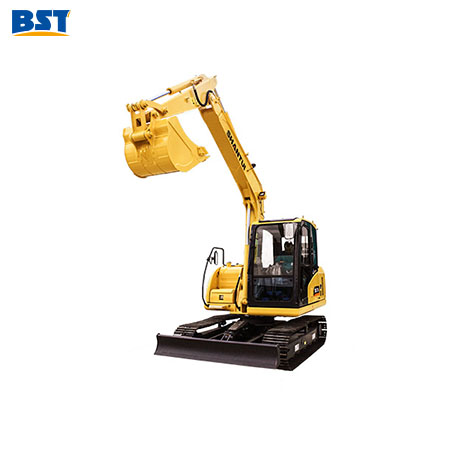

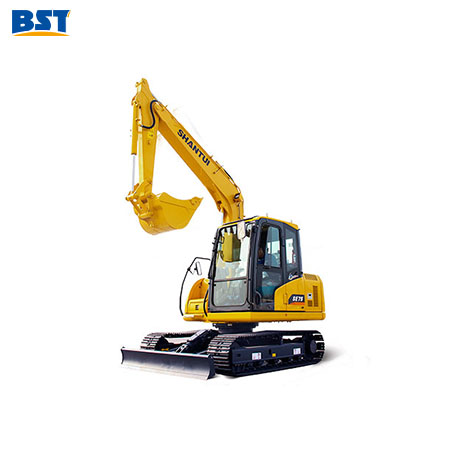

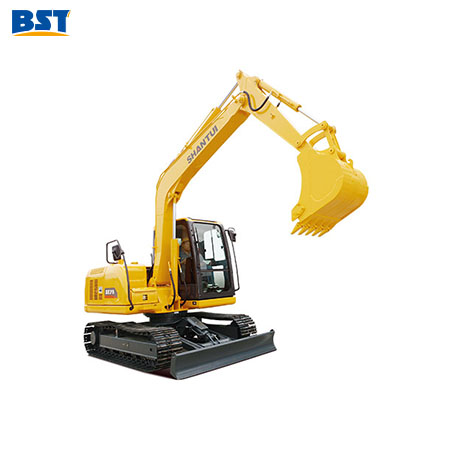

Name: Shantui Excavator SE75
PARAMETER
Comparative item |
SE75(Standard version) |
|---|---|
| Overall dimensions | |
| Overall length (mm) | 6240 |
| Ground length (During transport) (mm) | 3750 |
| Overall height (To the top of boom) (mm) | 2660 |
| Overall width (mm) | 2260 |
| Overall height (To top of cab) (mm) | 2680 |
| Ground clearance of counterweight (mm) | 825 |
| Minimum ground clearance (mm) | 385 |
| Tail turning radius (mm) | 1880 |
| Track length (mm) | 2820 |
| Track gauge (mm) | 1800 |
| Track width (mm) | 2250 |
| Standard track shoe width (mm) | 450 |
| Turntable width (mm) | 2230 |
| Distance from slewing center to tail (mm) | 1850 |
| Working range | |
| Maximum digging height (mm) | 6945 |
| Maximum dumping height (mm) | 4895 |
| Maximum digging depth (mm) | 4120 |
| Maximum vertical digging depth (mm) | 3620 |
| Maximum digging distance (mm) | 6360 |
| Maximum digging distance at ground level (mm) | 6205 |
| Working device minimum turning radius (mm) | 2040 |
| Maximum lifting height of bulldozer blade (mm) | 385 |
| Maximum digging depth of bulldozer blade (mm) | 225 |
| Engine | |
| Model | V3307T (China III) |
| Type | Water-cooled and turbocharged |
| Displacement (L) | 3.3 |
| Rated power (kW/rpm) | 48.9/2000 |
| Hydraulic system | |
| Type of hydraulic pump | Axial variable plunger pump |
| Rated working flow (L/min) | 160 |
| Bucket | |
| Bucket capacity (m³) | 0.25~0.35(0.32) |
| Swing system | |
| Maximum swing speed (r/min) | 11 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 44 |
| Bucket digging force (KN) | 66 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 7650 |
| Ground pressure (kPa) | 34 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 2.9/4.8 |
| Traction force (KN) | 86.5 |
| Gradeability | 70%（35°） |
| Tank capacity | |
| Fuel tank capacity (L) | 155 |
| Cooling system (L) | 11 |
| Engine oil capacity (L) | 11 |
| Hydraulic oil tank/system capacity (L) | 96/130 |
Product Description
China Genuine /OEM/ Aftermarket Komatsu Spare Parts Suppliers
All models Shantui bulldozer from 80hp-520hp: Shantui SD13 SD16 SD22 SD23 SD32 bulldozer.
All Shantui excavator: Shantui SE60 SE130 SE210 SE220 SE240 SE330 SE360 excavator.

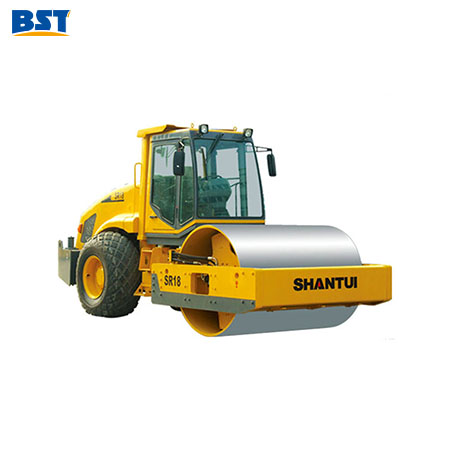

All Shantui Road roller: SR12 SR14 SR16 SR18 SR20 SR22 SR26 road roller.
All Shantui Motor grader : Shantui SG16 SG18 SG21 Shantui Motor grader.
All Shantui wheel loader: Shantui SL20W SL30W SL50W SL60W Shantui wheel loader.
Packing & Delivery
Packaging Details: Wooden Pallets
Port: Qingdao/Dalian/Shanghai
