Overview
Quick Details
Condition: New
Warranty: 6 months
Supply Ability: Supply Ability:1500 Unit/Units per Month
Place of Origin: Shandong, China

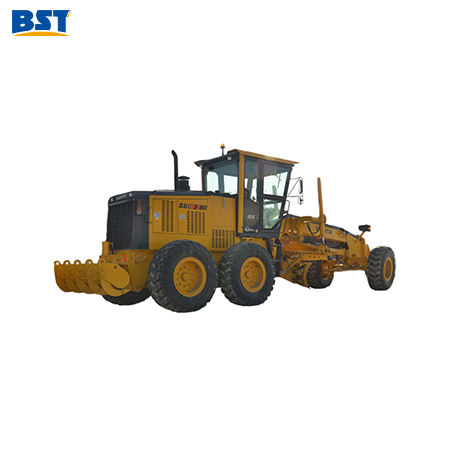

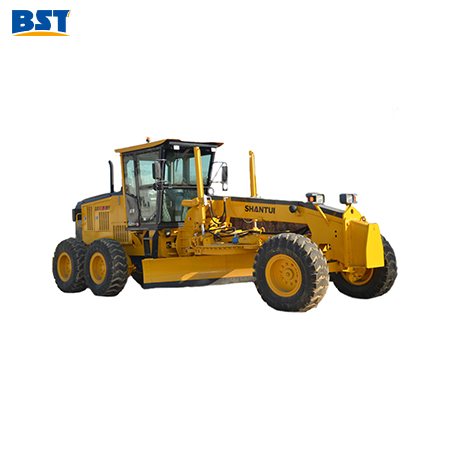

Name: Shantui Standarad Motor Grader SG18-3
PARAMETER
Product Name |
SG18-3 |
|---|---|
|
Performance parameters |
|
|
Operating weight of machine (kg) |
15900 |
|
Wheelbase (mm) |
6260 |
|
Wheel tread (mm) |
2155 |
|
Minimum ground clearance (mm) |
430 |
|
Steering angle of front wheels (°) |
±45 |
|
Articulated steering angle (°) |
±25 |
|
Maximum traction force (kN) |
83.5（f=0.75） |
|
Turning radius (mm) |
7,800 (Outer side of front wheel) |
|
Maximum gradeability (°) |
20 |
|
Width of shovel blade (mm) |
3660/3965 |
|
Height of shovel blade (mm) |
635 |
|
Blade slewing angle (º) |
360 |
|
Blade cutting angle (º) |
37-83 |
|
Maximum digging depth of blade (mm) |
500 |
|
Length (mm) |
9015 |
|
Width (mm) |
2600 |
|
Heigh (mm) |
3400 |
|
Engine |
|
|
Engine model |
6BTAA5.9-C180 |
|
Emission |
China-II |
|
Type |
Mechanical direct injection |
|
Rated power/rated speed (kw/rpm) |
132kW/2200rpm |
|
Drive system |
|
|
Torque converter |
Single-stage single-phase three-element |
|
Transmission |
Countershaft power shift |
|
Gears |
Six forward and three reverse |
|
Speed for forward gear I (km/h) |
5.4 |
|
Speed for forward gear II (km/h) |
9.3 |
|
Speed for forward gear III (km/h) |
12.2 |
|
Speed for forward gear IV (km/h) |
20.7 |
|
Speed for forward gear V (km/h) |
25.6 |
|
Speed for forward gear VI (km/h) |
39.7 |
|
Speed for reverse gear I (km/h) |
5.4 |
|
Speed for reverse gear II (km/h) |
12.2 |
|
Speed for reverse gear III (km/h) |
25.6 |
|
Brake system |
|
|
Service brake type |
Hydraulic brake |
|
Parking brake type |
Mechanical brake |
|
Brake oil pressure (MPa) |
10 |
|
Hydraulic system |
|
|
Working pump |
Constant displacement gear pump, with flow at 28ml/r |
|
Operating valve |
Integral multi-way valve |
|
Pressure setting of safety valve (MPa) |
16 |
|
Pressure setting of safety valve (MPa) |
12.5 |
|
Filling of fuel/oils/fluids |
|
|
Fuel tank (L) |
340 |
|
Working hydraulic fuel tank (L) |
110 |
|
Transmission (L) |
28 |
|
Drive axle (L) |
25 |
|
Balance box (L) |
2X38 |
Product Description
China Genuine /OEM/ Aftermarket Komatsu Spare Parts Suppliers
All models Shantui bulldozer from 80hp-520hp: Shantui SD13 SD16 SD22 SD23 SD32 bulldozer.
All Shantui excavator: Shantui SE60 SE130 SE210 SE220 SE240 SE330 SE360 excavator.
All Shantui Road roller: SR12 SR14 SR16 SR18 SR20 SR22 SR26 road roller.
All Shantui Motor grader : Shantui SG16 SG18 SG21 Shantui Motor grader.
All Shantui wheel loader: Shantui SL20W SL30W SL50W SL60W Shantui wheel loader.
Packing & Delivery
Packaging Details: Wooden Pallets
Port: Qingdao/Dalian/Shanghai
