Overview
Quick Details
Condition: New
Warranty: 6 months
Supply Ability: Supply Ability:1500 Unit/Units per Month
Place of Origin: Shandong, China

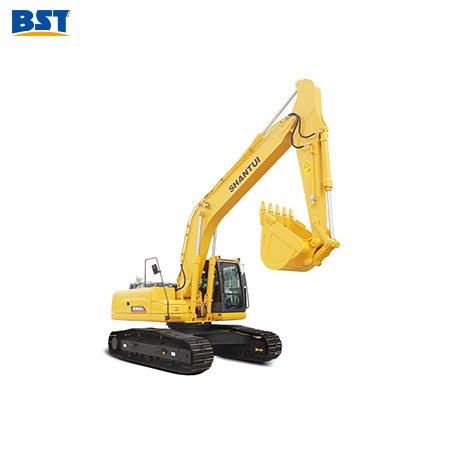

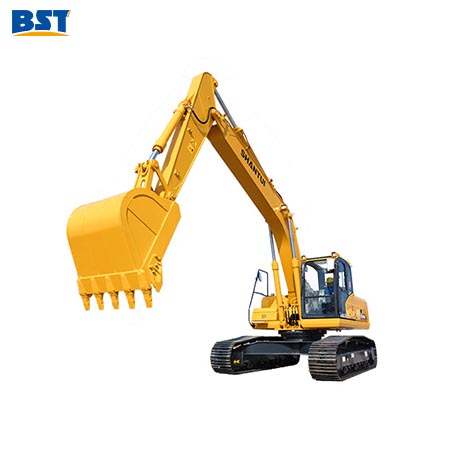

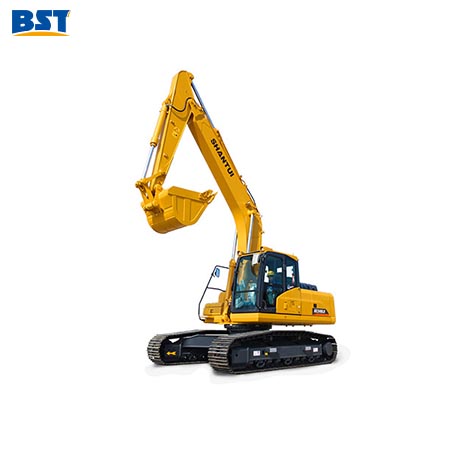

Name: Shantui Excavator SE245LC
PARAMETER
Comparative item |
SE245LC (Standard version) |
|---|---|
Overall dimensions |
|
| Overall length (mm) | 9985 |
| Ground length (During transport) (mm) | 5350 |
| Overall height (To the top of boom) (mm) | 3235 |
| Overall width (mm) | 3180 |
| Overall height (To top of cab) (mm) | 3075 |
| Ground clearance of counterweight (mm) | 1083 |
| Minimum ground clearance (mm) | 465 |
| Tail turning radius (mm) | 3000 |
| Track length (mm) | 4660 |
| Track gauge (mm) | 2580 |
| Track width (mm) | 3180 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 2725 |
| Distance from slewing center to tail (mm) | 3000 |
Working range |
|
| Maximum digging height (mm) | 10180 |
| Maximum dumping height (mm) | 7200 |
| Maximum digging depth (mm) | 6864 |
| Maximum vertical digging depth (mm) | 5978 |
| Maximum digging distance (mm) | 10198 |
| Maximum digging distance at ground level (mm) | 10015 |
| Working device minimum turning radius (mm) | 3276 |
| Maximum lifting height of bulldozer blade (mm) | – |
| Maximum digging depth of bulldozer blade (mm) | – |
Engine |
|
| Model | QSB7(China III) |
| Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 6.7 |
| Rated power (kW/rpm) | 150/2050 |
Hydraulic system |
|
| Type of hydraulic pump | Duplex axial variable displacement plunger pump |
| Rated working flow (L/min) | 2×238 |
Bucket |
|
| Bucket capacity (m³) | 1.05 |
Swing system |
|
| Maximum swing speed (r/min) | 11 |
| Brake type | Mechanically applied and pressure released |
Digging force |
|
| Bucket arm digging force (KN) | 99/107 |
| Bucket digging force (KN) | 137/148 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 24800 |
| Ground pressure (kPa) | 47.9 |
Traveling system |
|
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.3/5.1 |
| Traction force (KN) | 274 |
| Gradeability | 70%（35°） |
Tank capacity |
|
| Fuel tank capacity (L) | 330 |
| Cooling system (L) | 28 |
| Engine oil capacity (L) | 22 |
| Hydraulic oil tank/system capacity (L) | 270/400 |
Product Description
China Genuine /OEM/ Aftermarket Komatsu Spare Parts Suppliers
All models Shantui bulldozer from 80hp-520hp: Shantui SD13 SD16 SD22 SD23 SD32 bulldozer.
All Shantui excavator: Shantui SE60 SE130 SE210 SE220 SE240 SE330 SE360 excavator.
All Shantui Road roller: SR12 SR14 SR16 SR18 SR20 SR22 SR26 road roller.
All Shantui Motor grader : Shantui SG16 SG18 SG21 Shantui Motor grader.
All Shantui wheel loader: Shantui SL20W SL30W SL50W SL60W Shantui wheel loader.
Packing & Delivery
Packaging Details: Wooden Pallets
Port: Qingdao/Dalian/Shanghai
