Quick Details
Condition: New
Warranty: 6 months
Supply Ability: Supply Ability:1500 Unit/Units per Month
Place of Origin: Shandong, China
Name: Weichai engine Ass’y WD615 for shantui dzoer SD16
Product Description
| Parameter name | SD32 (Standard version) | SD32C (Coal version) | SD32W (Rock version) | SD32D (Desert version) | SD32R (Environmental sanitation version) |
|---|---|---|---|---|---|
| Performance parameters | |||||
| Operating weight (Kg) | 40200 | 40500 | 40900 | 39500 | 37100 |
| Ground pressure (kPa) | 97.7 | 98.4 | 99.4 | 96 | 90.2 |
| Engine | |||||
| Engine model | WP12/QSNT-C345 | QSNT-C345 | WP12/QSNT-C345 | QSNT-C345 | QSNT-C345 |
| Rated power/rated speed (kW/rpm) | 257/2000，258/2000 | 257/2000 | 258/2000，257/2000 | 257/2000 | 257/2000 |
| Overall dimensions | |||||
| Overall dimensions of machine (mm) | 8650*4130*3760 | 8650*4755*3760 | 8650*4130*3760 | 8650*4130*3760 | 8650*4332*3760 |
| Driving performance | |||||
| Forward speed (km/h) | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 | F1:0-3.6 F2:0-6.6 F3:0-11.5 |
| Reversing speed (km/h) | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 | R1:0-4.4 R2:0-7.8 R3:0-13.5 |
| Chassis System | |||||
| Center distance of track (mm) | 2140 | 2140 | 2140 | 2140 | 2140 |
| Width of track shoes (mm) | 560/610/660/710 | 560/610/660/710 | 560/610/660/710 | 560/610/660/710 | 560/610/660/710 |
| Ground length（mm) | 3150 | 3150 | 3150 | 3150 | 3150 |
| Tank capacity | |||||
| Fuel tank (L) | 640 | 640 | 640 | 640 | |
| Working device | |||||
| Blade type | Straight tilting blade , Angle Blade and Semi-U blade | Semi-U coal blade and coal U-blade | Rock straight tilting blade, rock angle blade and rock semi-U blade | Straight tilting blade , Angle Blade and Semi-U blade | Sanitation blade |
| Digging depth (mm) | 560/630/560 | 560 | 560/630/560 | 560/630/560 | 560 |
| Ripper type | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank | – |
| Ripping depth (mm) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) | 1,250 (Single-shank) and 842 (Three-shank) |
Detailed Images

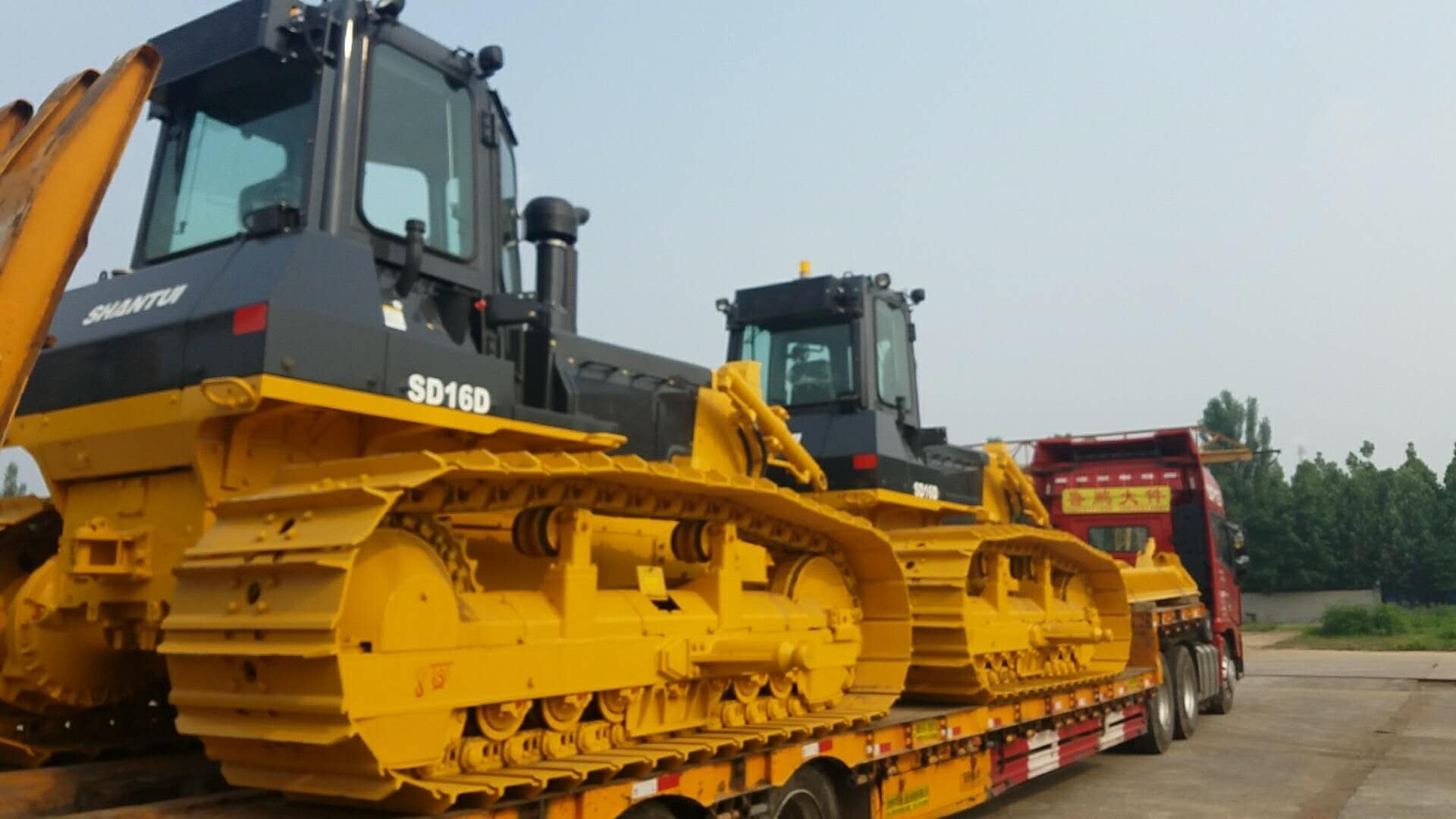

Packing & Delivery
Packaging Details: Wooden Pallets
Port: Qingdao/Dalian/Shanghai
