Overview
Quick Details
Condition: New
Warranty: 6 months
Supply Ability: Supply Ability:1500 Unit/Units per Month
Place of Origin: Shandong, China
Name: Weichai engine Ass’y WD615 for shantui dzoer SD16
Product Description

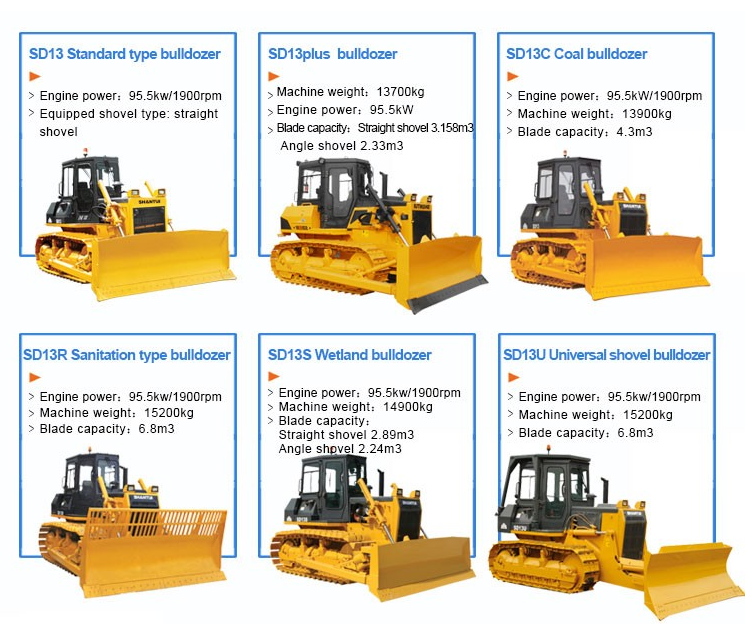

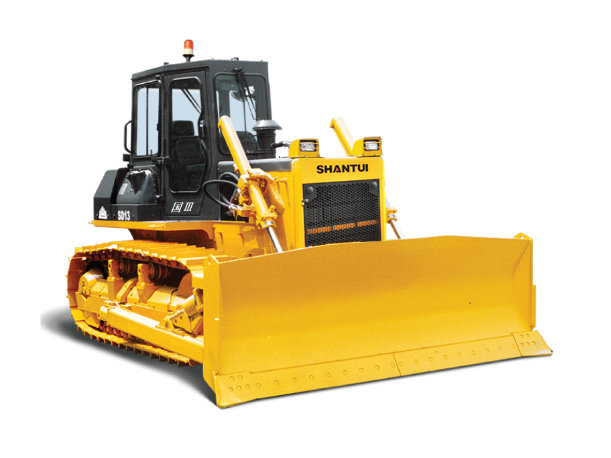

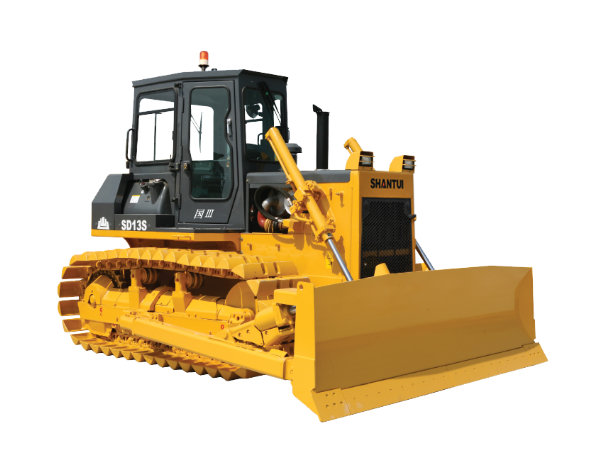

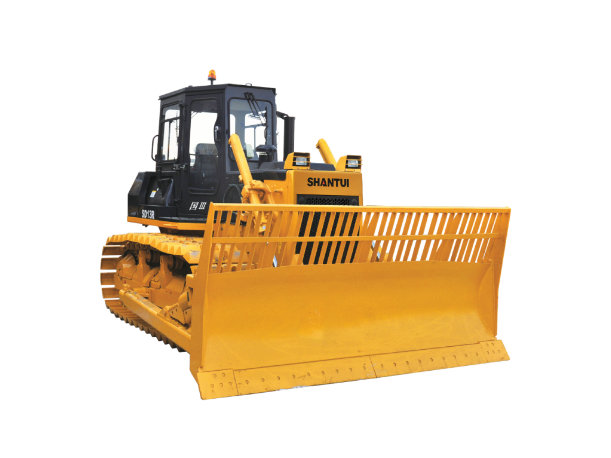

| Parameter name | SD13 (Standard version) | SD13S (Wetland version) | SD13R (Environmental sanitation version) | SD13C (Coal version) |
|---|---|---|---|---|
| Performance parameters | ||||
| Operating weight (Kg) | 13700 | 14900 | 15200 | 13900 |
| Ground pressure (kPa) | 53.8 | 38.4 | 39.2 | 54.6 |
| Engine | ||||
| Engine model | SC8D143G2B1（China-II）/SC8DK（China-III） | SC8D143G2B1（China-II）/SC8DK（China-III） | SC8D143G2B1（China-II）/SC8DK（China-III） | SC8D143G2B1（China-II）/SC8DK（China-III） |
| Rated power/rated speed (kW/rpm) | 105/1900 | 105/1900 | 105/1900 | 105/1900 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 4492*3185*2950 | 4492*3510*3000 | 4492*3510*3000 | 4492*3700*2950 |
| Driving performance | ||||
| Forward speed (km/h) | F1：0-3.2 F2:0-5.9 F3:0-9.8 | F1：0-3.2 F2:0-5.9 F3:0-9.8 | F1：0-3.2 F2:0-5.9 F3:0-9.8 | F1：0-3.2 F2:0-5.9 F3:0-9.8 |
| Reversing speed (km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
| Chassis System | ||||
| Center distance of track (mm) | 1880 | 1880 | 1880 | 1880 |
| Width of track shoes (mm) | 460 | 700 | 700 | 560 |
| Ground length（mm) | 2365 | 2365 | 2365 | 2365 |
| Tank capacity | ||||
| Fuel tank (L) | 300 | 300 | 300 | 300 |
| Working device | ||||
| Blade type | Straight tilting blade | Straight tilting blade | Sanitation blade | Coal blade |
| Digging depth (mm) | 590 | 590 | 590 | 590 |
| Ripper type | Three-shank | – | – | – |
| Ripping depth (mm) | Three-shank | 567 | – |
Detailed Images
Packing & Delivery
Packaging Details: Wooden Pallets
Port: Qingdao/Dalian/Shanghai
